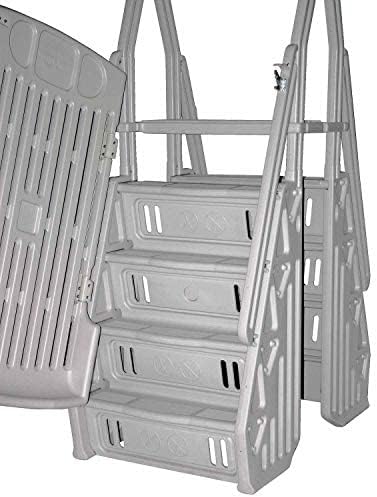

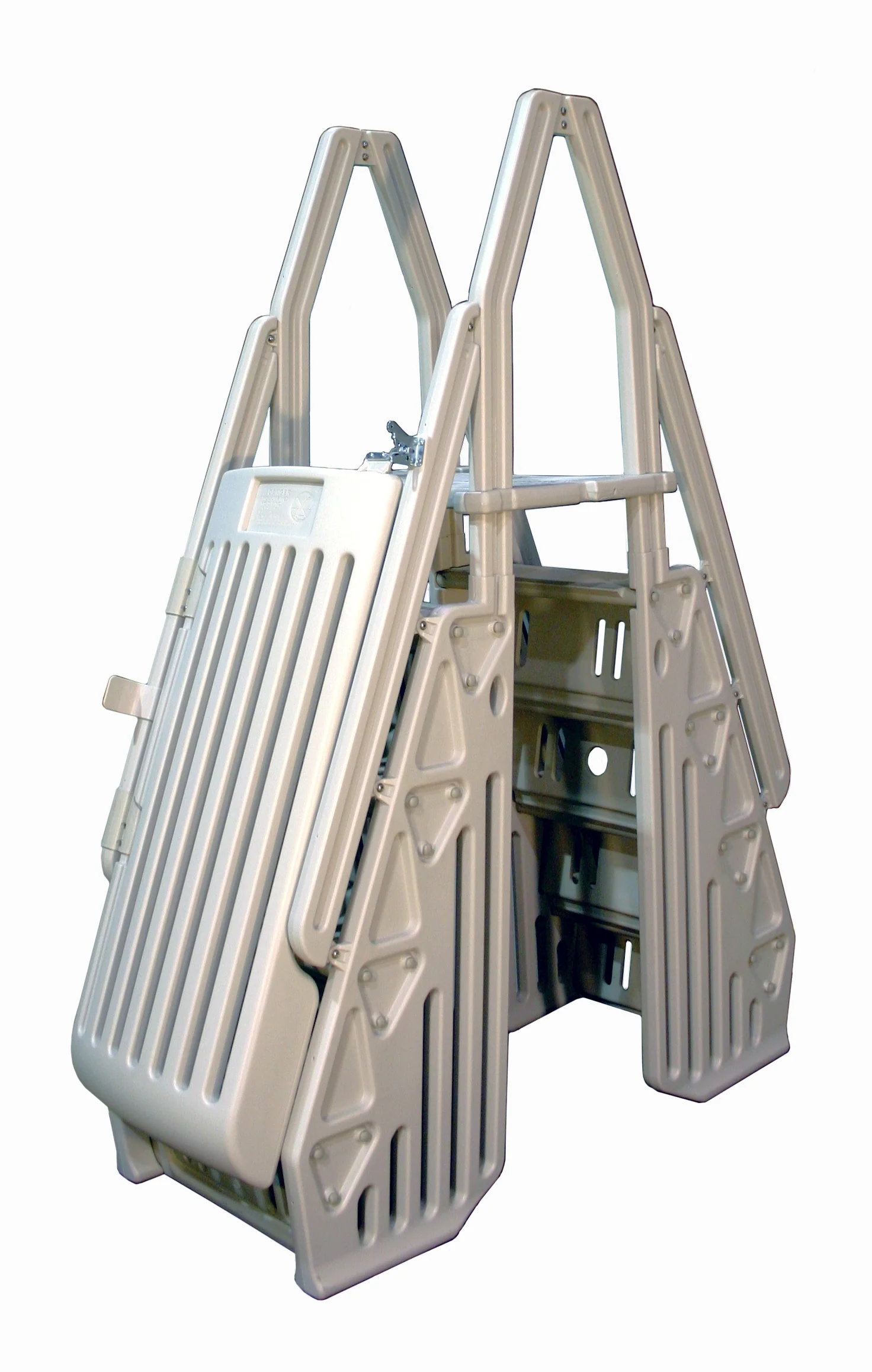

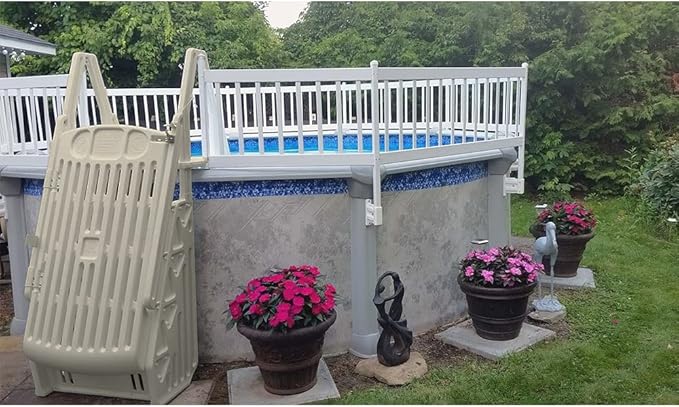

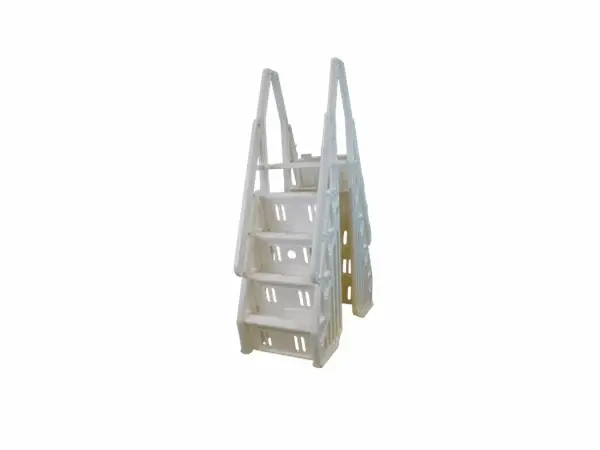

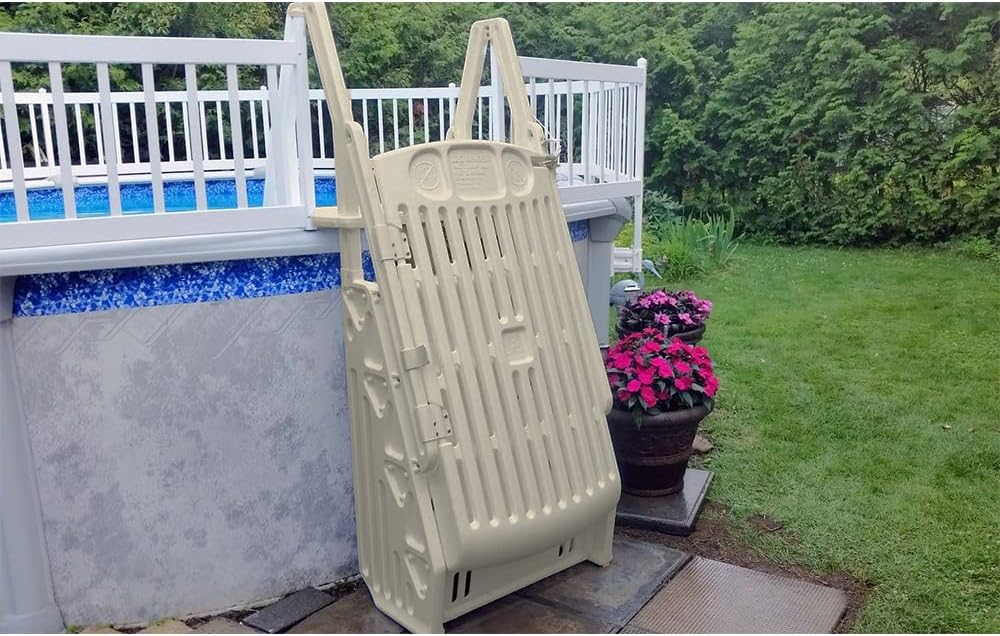

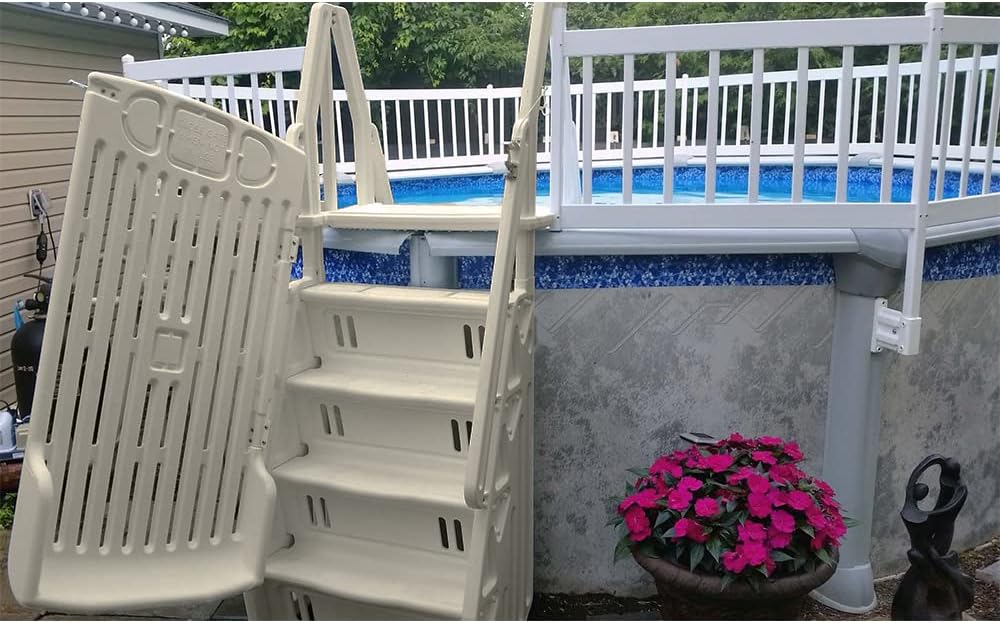

Vinyl Works 24" Gated Entry Above Ground Pool Ladder, Taupe | AF-T

Vinyl Works Canada AF-T Double Step Entry System with Lockable Safety Gate

Upgrade your above-ground pool with the Vinyl Works Canada AF-T Step Entry System, an energy-efficient and code-compliant pool ladder alternative. Designed for stability, safety, and ease of use, this double step entry system includes a self-closing, self-latching, lockable gate that meets or exceeds the latest ANSI/APSP/ICC standards. With a compact footprint and durable, maintenance-free resin construction, this system maximizes swimming space while providing long-lasting performance for your backyard pool.

Key Features

• Double step entry system for safe, easy climbing in and out of your above-ground pool

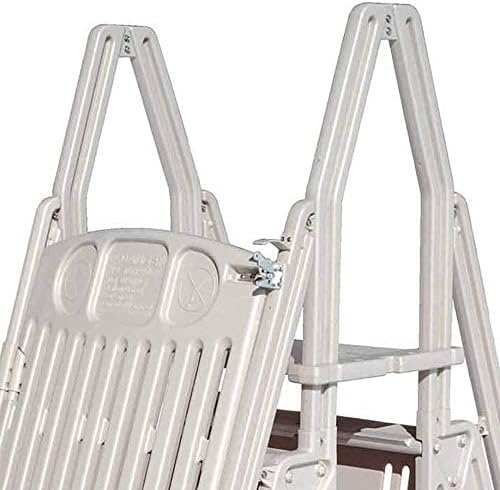

• Self-closing, self-latching, and lockable gate to meet code requirements (lock not included)
• Adjustable height from 48" to 56" with a 12" top rail clearance
• Space-saving 22" footprint to maximize pool use
• Durable resin construction with stainless hardware for long-term strength
• Non-slip tread surfaces and double handrails for secure entry and exit
• Gate and risers include built-in safety signage (No Diving, No Jumping)
• Available in Taupe to complement your pool design

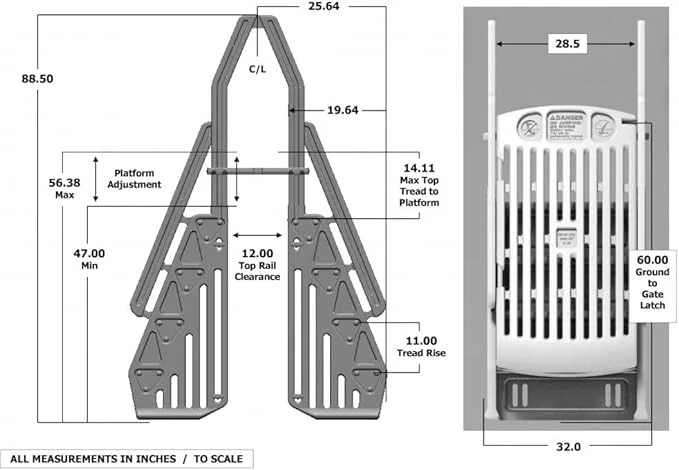

Product Specifications

• Adjustable Height: 47.5"–56.25"
• Top Platform: 12" deep x 20.25" wide (inside handrails)
• Tread Size: 7.5" x 20"
• Handrail Clearance: 20.25"
• Footprint: 22"
• Weight Capacity: 300 lbs (one person only)
• Material: Maintenance-free resin with stainless hardware
• Gate Latch Height: 55" from ground (meets/exceeds safety codes)
• Compatibility: Flat-bottom above-ground pools only
• Assembly: Snap-and-lock components for easy setup
• Optional Add-On: In-pool light (Model OPT12V, sold separately)
• Warranty: Manufacturer warranty included

Why We Love It

• Provides superior safety compared to traditional A-frame pool ladders
• Compact design preserves swimming area—ideal for smaller pools
• Meets or exceeds all current pool entry and enclosure code requirements
• Stable, non-damaging base protects pool liner
• Optional fencing and lighting accessories available for added security and convenience

Sizing Tip

This entry system is adjustable to fit above-ground pool walls from 47.5" to 56.25". Ensure your pool falls within this range before ordering for a perfect fit.

Need Help Choosing the Right Model?

Contact our pool specialists today for expert guidance on selecting the best step entry system for your pool.
